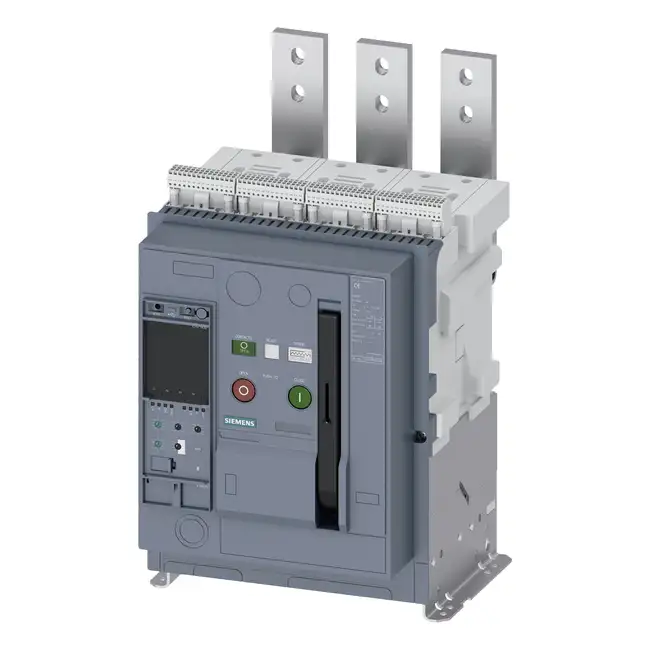

Circuit Breaker 3WA1112-3NE03-7HA3-Z F19+F40+S55+T40

Fixed-mounted circuit breaker IEC 60947-2, frame size 1, 3-poles, In=1250A up to 690V AC 50/60Hz, breaking capacity S Icu=66/50kA at 500/690V, Trip unit ETU600 LSI upgrade ready , colordisplay, bluetooth and USB interface, Protection LT, ST, INST, N-protection required an external N-sensor, incl. trip alarm switch (1xCO), front connection double hole, with internal voltage tap on upper stab of circuit breaker, with voltage tap module VTM680 and power supply of ETU600, able to communication, integrated metering type PMF-3 Advanced Power Monitor., Voltage, Energy, Power, Power factor, Frequency, Unbalance, Temperature, Power quality, with manual and motorized operating mechanism (M) 110-127 V AC / 110-125 V DC, Storage status and ready-to- close signaling switches, Auxiliary switches 4NO+4NC, Closing coil (CC) 100% OP 110-127 V AC / 110-125 V DC, applicable for continuous duty, Remote trip alarm reset (RR) 110-127 V AC / 110-125 V DC for momentary duty, without 2nd shunt trip, Shunt trip (ST) 100% OP 110-127 V AC / 110-125 V DC, suitable for continuous duty, Option F19 = COM190 COM module PROFINET IO Modbus TCP 2 switched Ethernet ports circuit breaker internal Option F40 = Sealing cover for ETU Option S55 = Mutual mechanical interlocking with 2 m bowden cable for circuit breakers in fixed- mounted design necessary once for each circuit breaker. Option T40 = Door sealing frame IP41
