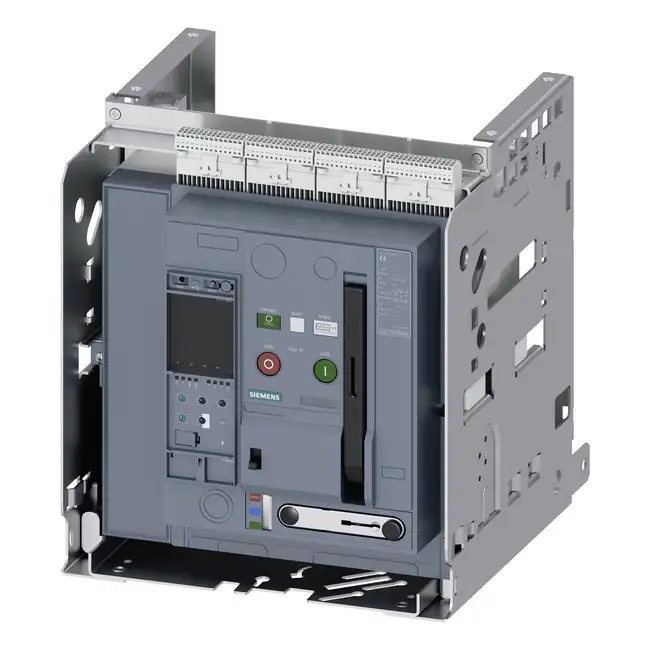

Circuit Breaker 3WA1116-2AF42-0EE4
MLFB / Order No.: 3WA1116-2AF42-0EE4Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 1, 4-poles, N-pole left, In=1600A up to 690V AC 50/60Hz, breaking capacity N Icu=55/42kA at 500/690V, Trip unit ETU600 LSIG upgrade ready , colordisplay, bluetooth and USB interface, Protection LT, ST, INST, GFx, include N-protection, (internal N-sensor available), incl. trip alarm switch (1xCO), rear connection horizontal, guide frame with shutter and w/o position signalling switch, without Com & metering function Manual operating mechanism with mechanical closing, without Spring charging motor, Ready-to-close signal. switch, Auxiliary switches 2NO+2NC, Closing coil (CC) 100% OP 208-240 V AC / 220-250 V DC, applicable for continuous duty, without Remote trip alarm reset coil (RR), Shunt trip (ST2) 100% OP 208-240 V AC / 220-250 V DC, suitable for continuous duty, Shunt trip (ST) 100% OP 208-240 V AC / 220-250 V DC, suitable for continuous duty,
- ManufacturerSiemens
- Product NameCircuit Breaker 3WA1116-2AF42-0EE4
- Order Number3WA1116-2AF42-0EE4
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage250 V DC
- CurrentIn=1600A
- Frequency60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- Product TypeCircuit Breaker
- Size1
- Poles4
- Contacts2NO + 2NC
- Line ProtectionETU600
- CertificationsIEC
- StandardIEC 60947-2
- Displaydisplay
- HS Code (8-digit, Preliminary)90318090
- OriginGermany
- Warranty12 months
