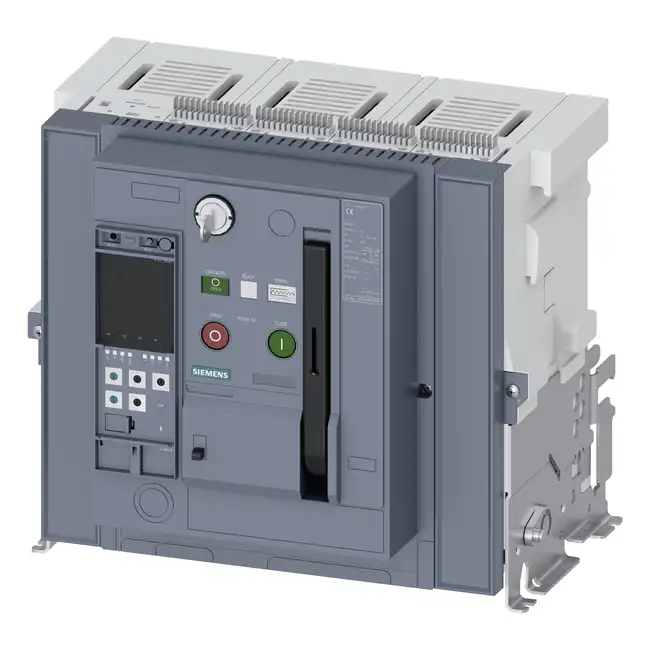

3WA Circuit Breaker 3WA1232-3FE30-8EA4-Z F19+S08
MLFB / Order No.: 3WA1232-3FE30-8EA4-Z F19+S08Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker without guide frame, IEC 60947-2, frame size 2, 3-poles, In=3200A up to 690V AC 50/60Hz, breaking capacity S Icu=66/50kA at 500/690V, Trip unit ETU600 LSI upgrade ready , colordisplay, bluetooth and USB interface, Protection LT, ST, INST, N-protection required an external N-sensor, incl. trip alarm switch (1xCO), with internal voltage tap on lower stab of circuit breaker, with voltage tap module VTM680 and power supply of ETU600, able to communication, integrated metering type PMF-2 Basic Power Monitoring, Voltage, Energy, Power, Power factor, Frequency, Unbalance, Temperature, with manual and motorized operating mechanism (M) 208-240 V AC / 220-250 V DC, Storage status and ready-to- close signaling switches, Auxiliary switches 4NO+4NC, Closing coil (CC) 100% OP 208-240 V AC / 220-250 V DC, applicable for continuous duty, without Remote trip alarm reset coil (RR), without 2nd shunt trip, Shunt trip (ST) 100% OP 208-240 V AC / 220-250 V DC, suitable for continuous duty, Option F19 = COM190 COM module PROFINET IO Modbus TCP 2 switched Ethernet ports circuit breaker internal Option S08 = Locking provision against unauthorized closing Secured Open; for with Ronis lock
- ManufacturerSiemens
- Product NameCircuit Protection 3WA1232-3FE30-8EA4-Z
- Order Number3WA1232-3FE30-8EA4-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage690V, 240 V
- Current3200A
- Frequency60Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- HS Code (8-digit, Preliminary)90318090
- OriginGermany
- Warranty12 months
