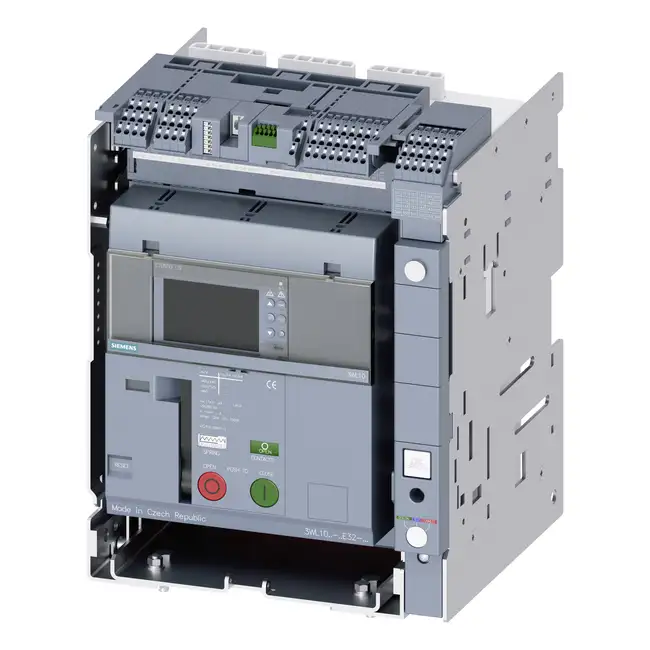

Circuit Breaker 3WL1010-3AE32-0AA0-Z K50+K52+K53+K55+S23+T30

Withdrawable circuit breakers with guide frame and PSS 3-pole, frame size 0, IEC In=1000A to 690V, 50/60Hz AC Icu=66kA at 415V Icu=50kA at 500V Icu=50kA at 690V ETU650 electronic trip units LSI display with tripped signaling switch, RTC and 4Aux auxiliary switches protection adjustable l: Ir 0.4-1 In s: Isd 0.6-10 In; I:Ii 1-15 In w. var. n conductor protection and upgradeable prot./Meas. and communication functions rear horizontal connection no communication link, no metering funct. Manual operating mechanism of the spring energy store With mechanical closing Without 2nd auxiliary release Without 1st auxiliary release K50= Ready-to-close signaling RTC auxiliary switch as version 24 V DC digital signal K52= Auxiliary switch AUX 2W + 2W Version 2x 400 V AC + 2x 24 V DC K53= Tripped signaling switch S24 as version 24 V DC digital signal K55= Position signaling switch PSS at guide frame as version 24 V DC digital signal S23= Locking device bracket lock in OFF position,against unauthorized Switching on D=7 mm, metal (Safe Off/disconnector function) T30= Door sealing frame IP30 for slide-in circuit breaker
