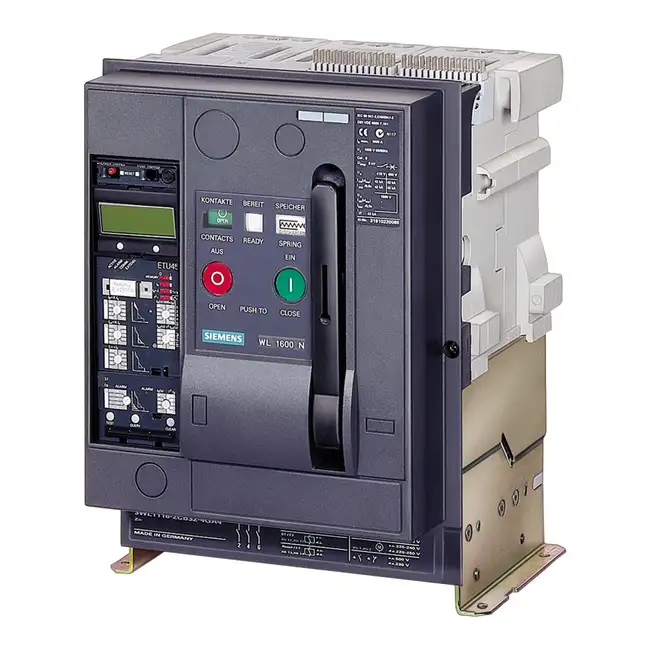

Circuit Breaker 3WL1106-2DG46-5FA2-Z B04+S24+T40+F23+R10+R15+M05+K07
MLFB / Order No.: 3WL1106-2DG46-5FA2-Z B04+S24+T40+F23+R10+R15+M05+K07Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
WITHDRAWABLE CIRCUIT BREAKER WITH GUIDE FRAME 4-POLE, SIZE I, IEC IN=630A TO 690V, AC50/60HZ ICU=55KA AT 500V REAR CONNECTION HORIZONTAL ELECTRONIC TRIP UNIT ETU 27 LSING PROT. ADJUST.B 0.4-1IN EARTH FAULT/ N-PROT. INTEGRATED MOT./MAN. OPER.MECHAN. W.STOR. DRIVE MOTOR AC 50/60HZ110-127V BZW DC 110-125V REQU. AC 50/60HZ 110V, DC 110V WITH 1ST AUXILIARY RELEASE SHUNT TRIP"F", F1 AC50/60HZ 110V/ DC 110V, 100%ED WITHOUT 2ND SHUNT TRIP 2NO+2NC B04 = RATED CURRENT REF. MODULE 400A F. ETU25, 27, 45, 55, 75, 76 FOR SETTING RATED CURRENT IN S24 = EMERGENCY STOP SWITCH T40 = DOOR SEALING FRAME F23 = INTERNAL CURRENT TRANSFORMERS 4-POLE SWITCH SZ.I R10 = WITHDRAWABLE ARC CHUTE COVER R15 = WITHDRAWABLE POSITION SWITCH 3 CHANGE-OVER CONTACT M05 = MOTOR OPERATING MECHANISM DRIVE MOTOR AC 50/60HZ110-127V OR DC 110-125V K07 = TRIPPED-SIGNALLING CONTACT, 1W NOT POSSIBLE WITH OPTION F02
- ManufacturerSiemens
- Product NameCircuit Breaker 3WL1106-2DG46-5FA2-Z B04+S24+T40+F23+R10+R15+M05+K07
- Order Number3WL1106-2DG46-5FA2-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage690V
- CurrentIN=630A
- Power1W
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- Product TypeCircuit Breaker
- Poles4
- Frequency60 Hz
- Contacts2NO + 2NC
- Line ProtectionETU25
- CertificationsIEC
- HS Code (8-digit, Preliminary)85043190
- OriginGermany
- Warranty12 months
