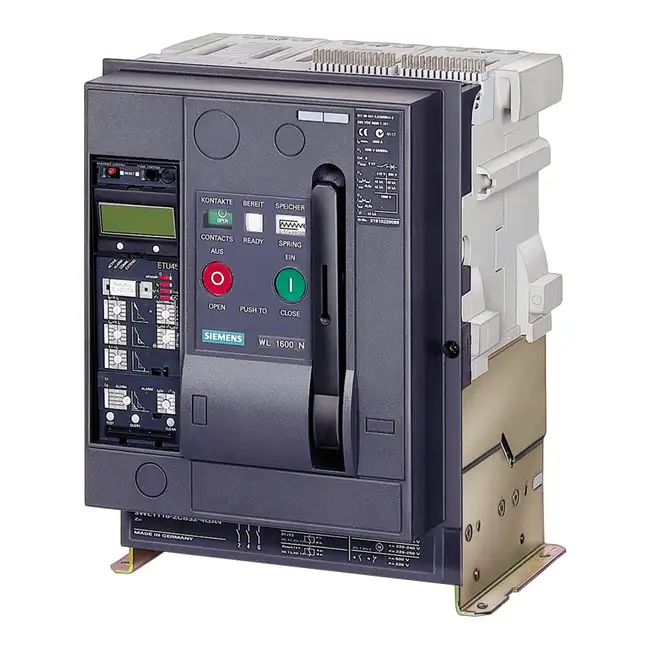

Circuit Breaker 3WL1108-3FG35-5FR2-Z F02+S07
MLFB / Order No.: 3WL1108-3FG35-5FR2-Z F02+S07Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker without guide frame 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 45 LSING protection adjustable 0.4-1 in with display and cubicle bus with ground fault protection Opt.: Comm./measuring func./ZSS Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 110-127 V AC or 110-125 V DC Activation 50/60 Hz 110 V AC, 110 V DC With 1st auxiliary release Shunt release "F", F1 50/60 Hz 110 V AC/110 V DC, 100% on-load factor With 2nd auxiliary release "RC", F4 Undervoltage, Delay 0.2-3.2s 110-127 V AC, 110-125 V DC, 100% ED 2NO+2NC F02= COM15 PROFIBUS module with breaker status sensor S07= Locking device in OFF position w. 4 bracket locks (Safe Off/disconnector function) Disconnector condition in compliance with IEC 60947-2
- ManufacturerSiemens
- Product NameCircuit Breaker 3WL1108-3FG35-5FR2-Z F02+S07
- Order Number3WL1108-3FG35-5FR2-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage125 V DC
- CurrentIn=800A
- Frequency60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- Product TypeCircuit Breaker
- Poles3
- Contacts2NO + 2NC
- CertificationsIEC
- StandardIEC 60947-2
- InterfacePROFIBUS
- Displaydisplay and
- HS Code (8-digit, Preliminary)90318090
- OriginGermany
- Warranty12 months
