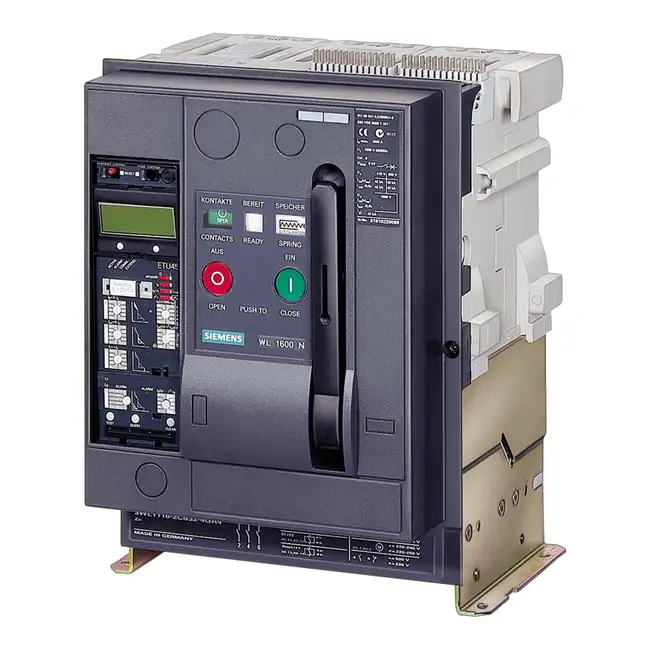

3WL Circuit Breaker 3WL1110-3FB35-4AS4-Z C22+F02+R16+R21+S07
MLFB / Order No.: 3WL1110-3FB35-4AS4-Z C22+F02+R16+R21+S07Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker without guide frame 3-pole, size I, IEC In=1000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU45 LSIN protection adjustable 0.4-1 in with display and cubicle bus Opt.: Comm. /measuring func./ground fault/ ZSS Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC without 1st auxiliary release With 2nd auxiliary release "RC", F4 Undervoltage, Delay 0.2-3.2s 208-240 V AC, 220-250 V DC, 100% ED 4NO+4NC C22= Ready indicator F02= COM15 PROFIBUS module with breaker status sensor R16= Position signaling switch, withdrawable part 6 changeover contacts R21= Shutter 2-part can be locked with padlock S07= Locking device in OFF position w. 4 bracket locks (Safe Off/disconnector function) Disconnector condition in compliance with IEC 60947-2
- ManufacturerSiemens
- Product NameCircuit Protection 3WL1110-3FB35-4AS4-Z
- Order Number3WL1110-3FB35-4AS4-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage690V, 500V
- Current1000A
- Frequency60Hz, 60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- HS Code (8-digit, Preliminary)90318090
- OriginGermany
- Warranty12 months
