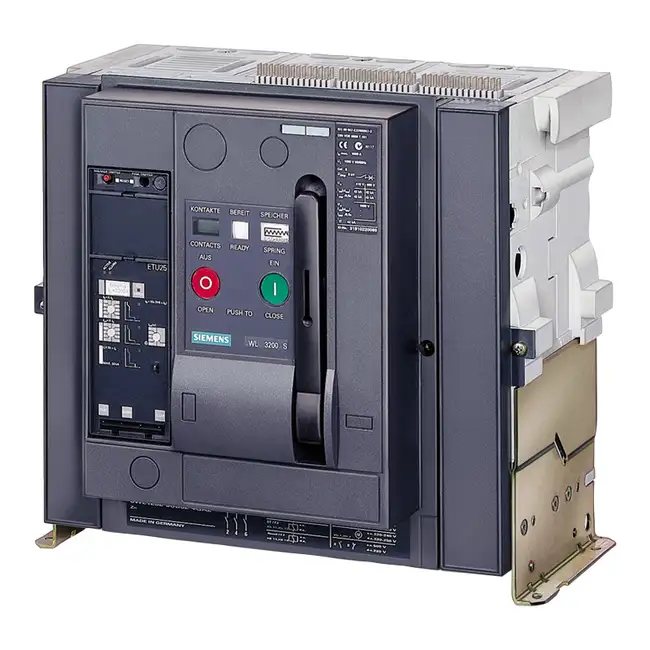

3WL Circuit Breaker 3WL1216-3EB35-4AS4-Z C22+K07
MLFB / Order No.: 3WL1216-3EB35-4AS4-Z C22+K07Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker without guide frame 3-pole, size II, IEC In=1600A to 690V, AC50/60Hz Icu=80kA at 500V rear connection horizontal Overcurrent release ETU 45 LSIN protection adjustable 0.4-1 in with cubicle bus Opt.: Comm. /measuring func./ground fault/ ZSS Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC without 1st auxiliary release With 2nd auxiliary release "RC", F4 Undervoltage, Delay 0.2-3.2s 208-240 V AC, 220-250 V DC, 100% ED 4NO+4NC C22= Ready indicator K07= Tripped signaling contact, 1 CO not possible with option F02
- ManufacturerSiemens
- Product NameCircuit Protection 3WL1216-3EB35-4AS4-Z
- Order Number3WL1216-3EB35-4AS4-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage690V, 500V
- Current1600A
- Frequency60Hz, 60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- HS Code (8-digit, Preliminary)85015200
- OriginGermany
- Warranty12 months
