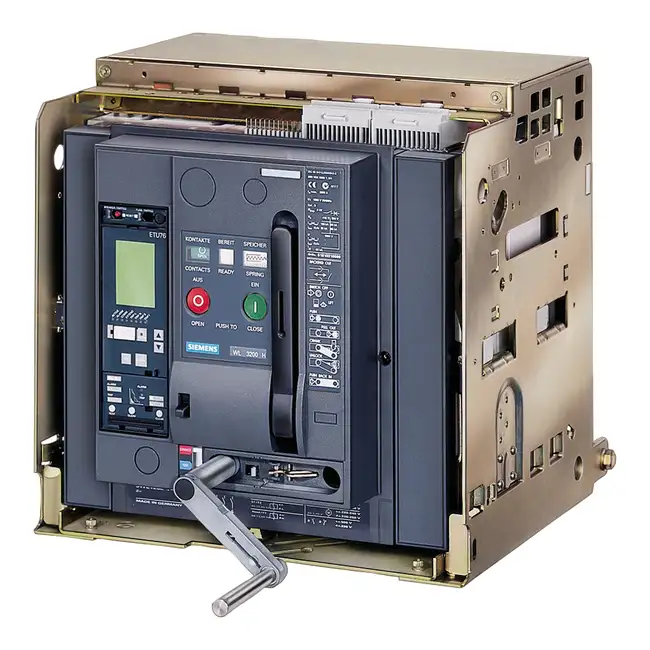

3WL Circuit Breaker 3WL1220-2NG35-5FF7-Z C11+C20+C22+C26+C27+K07+K12
MLFB / Order No.: 3WL1220-2NG35-5FF7-Z C11+C20+C22+C26+C27+K07+K12Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker without guide frame 3-pole, size II, IEC In=2000A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 76 LSING protection adjustable 0.4-1 in with graphic display U cubicle bus with ground fault protection Opt.: Comm./measuring func./ZSI Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 110-127 V AC or 110-125 V DC Activation 50/60 Hz 110 V AC, 110 V DC With 1st auxiliary release Shunt release "F", F1 50/60 Hz 110 V AC/110 V DC, 100% on-load factor With 2nd auxiliary release "F", F2 Shunt release 110 V AC/DC 100% on-load factor 6NO+2NC C11= electrical On with sealing cap not possible with option F02 C20= Spring charge status indicator not possible with option F02 C22= Ready indicator C26= Auxiliary switching function 1 Auxiliary release not possible with option F02 C27= Auxiliary switching function 2 Auxiliary release not possible with option F02 K07= Tripped signaling contact, 1 CO not possible with option F02 K12= Remote reset solenoid 120 V AC/125 V DC
- ManufacturerSiemens
- Product NameCircuit Protection 3WL1220-2NG35-5FF7-Z
- Order Number3WL1220-2NG35-5FF7-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage690V, 500V
- Current2000A
- Frequency60Hz, 60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- HS Code (8-digit, Preliminary)85285990
- OriginGermany
- Warranty12 months
