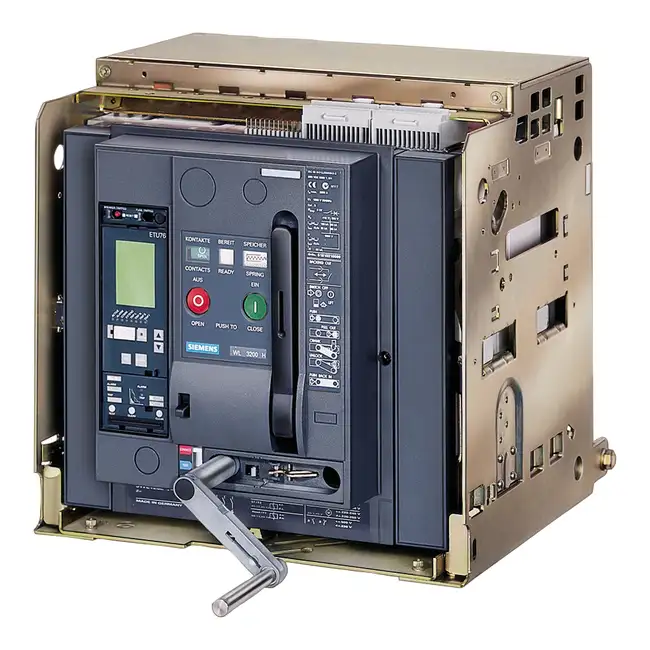

Circuit Breaker 3WL1225-3EB36-1GA2-Z M06
MLFB / Order No.: 3WL1225-3EB36-1GA2-Z M06Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Draw-out circuit breaker with slide-in module frame 3-pole, Size 2, IEC In=2500 A to 690 V, 50/60 Hz AC Icu=80 kA at 500 V Rear horizontal connection Overcurrent release ETU 45 LSIN protection adjustable 0.4-1 in with cubicle bus Opt.: Comm. /measuring func./ground fault/ ZSS With manual operating mechanism with memory with mechanical calling With 1st auxiliary release Shunt release "F", F1 50/60 Hz 230 V AC/220 V DC, 100% on-load factor without 2nd auxiliary release 2NO+2NC M06= Motor drive, Drive motor AC 50/60 Hz 208-240 V or 220-250 V DC
- ManufacturerSiemens
- Product NameCircuit Breaker 3WL1225-3EB36-1GA2-Z M06
- Order Number3WL1225-3EB36-1GA2-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage220 V DC
- CurrentIn=2500 A
- Frequency60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- Product TypeCircuit Breaker
- Size2
- Poles3
- Contacts2NO + 2NC
- CertificationsIEC
- HS Code (8-digit, Preliminary)85015200
- OriginGermany
- Warranty12 months
