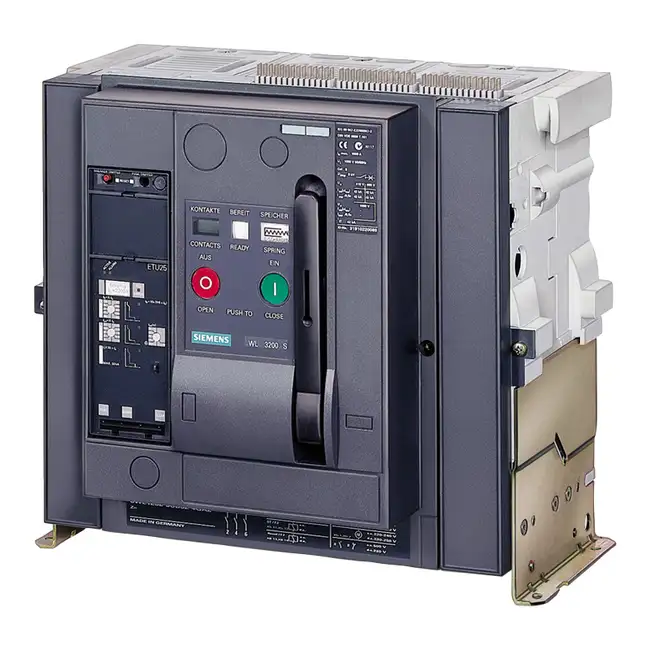

Circuit Breaker 3WL1232-3CB35-4GA2-Z C22+C26+R15+R30
MLFB / Order No.: 3WL1232-3CB35-4GA2-Z C22+C26+R15+R30Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker without guide frame 3-pole, size II, IEC In=3200A to 690V, AC50/60Hz Icu=80kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC With 1st auxiliary release Shunt release "F", F1 50/60 Hz 230 V AC/220 V DC, 100% on-load factor without 2nd auxiliary release 2NO+2NC C22= Ready indicator C26= Auxiliary switching function 1 Auxiliary release not possible with option F02 R15= Position signaling switch, withdrawable part 3 changeover contacts R30= Locking device against opening of the control cabinet door
- ManufacturerSiemens
- Product NameCircuit Breaker 3WL1232-3CB35-4GA2-Z C22+C26+R15+R30
- Order Number3WL1232-3CB35-4GA2-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage250 V DC
- CurrentIn=3200A
- Frequency60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- Product TypeCircuit Breaker
- Poles3
- Contacts2NO + 2NC
- CertificationsIEC
- HS Code (8-digit, Preliminary)85015200
- OriginGermany
- Warranty12 months
