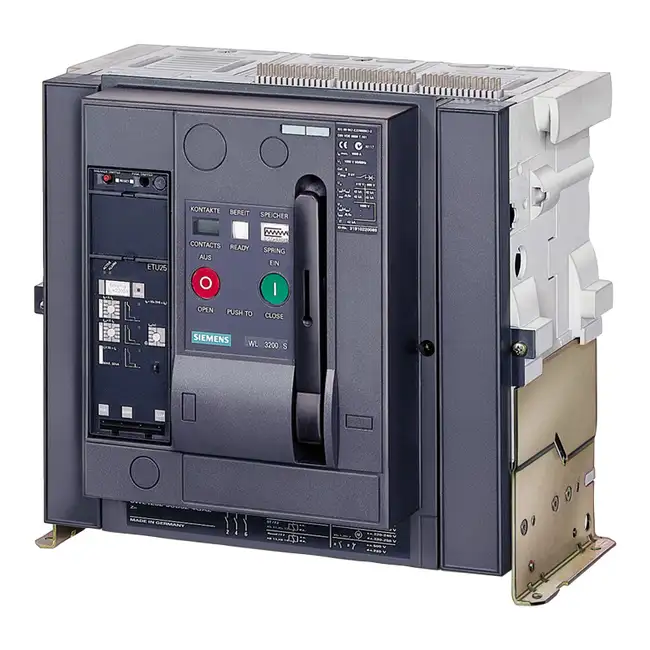

3WL Circuit Breaker 3WL1232-3DG36-5FA4-Z B32+C11+K07
MLFB / Order No.: 3WL1232-3DG36-5FA4-Z B32+C11+K07Prices are indicative USD list prices. Final pricing depends on quantity, destination and current exchange rate — confirmed in your quote within 24 hours. Availability is confirmed per request.
Product Description
Withdrawable circuit breaker with guide frame 3-pole, size II, IEC In=3200A to 690V, AC50/60Hz Icu=80kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 110-127 V AC or 110-125 V DC Activation 50/60 Hz 110 V AC, 110 V DC With 1st auxiliary release Shunt release "F", F1 50/60 Hz 110 V AC/110 V DC, 100% on-load factor without 2nd auxiliary release 4NO+4NC B32= Rated current reference module 3200 A for ETU25, 27, 45, 55, 75, 76 for setting rated current in C11= electrical On with sealing cap not possible with option F02 K07= Tripped signaling contact, 1 CO not possible with option F02
- ManufacturerSiemens
- Product NameCircuit Protection 3WL1232-3DG36-5FA4-Z
- Order Number3WL1232-3DG36-5FA4-Z
- Product DescriptionCircuit Protection for industrial automation applications.
- Voltage690V, 500V
- Current3200A, 3200 A
- Frequency60Hz, 60 Hz
- CategoryLow-Voltage Controls and Distribution > Circuit Breakers
- HS Code (8-digit, Preliminary)85015200
- OriginGermany
- Warranty12 months
